Question 1199182: Find the area of region ABCD in cm^2 if the radius of the circle is 2 cm and both AB and CD are perpendicular to EF.


https://ibb.co/FqLkNgg
Found 4 solutions by Edwin McCravy, ikleyn, greenestamps, math_tutor2020:
Answer by Edwin McCravy(20054) About Me  (Show Source):
You can put this solution on YOUR website!



Draw the two diameters AC and BD (in red)



OA is a radius so OA = 2. And by the marks along the horizontal diameter,
OE is half a radius or half of 2 which is 1.  So OE = 1

So triangle AOE is a 30-60-90 right triangle, so AE=sqrt%283%29

Triangle AOE has area = expr%281%2F2%29%2Abase%2Aheight=expr%281%2F2%29%281%29sqrt%283%29%22%22=%22%22sqrt%283%29%2F2%29

The four triangles AOE, BOE, COE, DOE are congruent.
So the four of them have area 4%28expr%28sqrt%283%29%2F2%29%29=2sqrt%283%29

Next we find the area of the sector AOD.

Angle AOD is 60o because angles AOE and DOE are both 60o,
so angle AOD = 180o-60o-60o = 60o.

The area of a sector is expr%281%2F2%29%28theta%2F360%29pi%2Aradius%5E2
and substituting the values, the area of sector AOD is

%281%2F2%29%2860%2F360%29%28pi%29%282%5E2%29%22%22=%22%22pi%2F3

The sector BOC is congruent to the sector AOD

Adding the 4 triangles and the two sectors,

Area of ABCD = %282sqrt%283%29%2Bpi%2F3%29cm%5E2

Edwin

Answer by ikleyn(52778) About Me  (Show Source):
You can put this solution on YOUR website!
.

I will borrow the plot from the post by Edwin.






The area of the figure  ABCD  is the sum of


      the area of triangle AOB   + the area of triangle DOC +
    + the area of the sector AOD + the area of the sector BOC.


The area of triangle AOB is the same as the area of equilateral triangle with the side of 2 units,
so it is 2%5E2%2A%28sqrt%283%29%2F4%29 = sqrt%283%29 square units.


The area of triangle AOB + the area of triangle DOC = 2%2Asqrt%283%29 square units.


Next, the area of the sector AOD is  1%2F6  of the area of the circle with the radius of 2;
so, the area of the sector AOD is  %281%2F6%29%2Api%2A2%5E2 = %284%2F6%29%2Api = %282%2F3%29%2Api square units.


The area of the sector AOD + the area of the sector BOC is twice that value, i.e.  %284%2F3%29%2Api  square units.


So, the  highlight%28highlight%28ANSWER%29%29  is  2%2Asqrt%283%29+%2B+%284%2F3%29%2Api  square units = 3.4641 + 4.1867 = 7.651 square units approximately.

Solved.



Answer by greenestamps(13198) About Me  (Show Source):
You can put this solution on YOUR website!


Also using Edwin's figure....



OD is the radius, and OF is half the radius; that makes each of the four triangles in the figure 30-60-90 right triangles. That means all six central angles are 60 degrees, so

(1) The two circular sectors AOD and BOC are each one-sixth of the circle; together their areas are one-third the area of the circle, which is %284%2F3%29pi; and
(2) each of the two triangular regions AOB and COD is a triangle with base 2sqrt%283%29 and height 1; together their areas are 2sqrt%283%29.

So the area of region ABCD is

ANSWER: %284%2F3%29pi%2B2sqrt%283%29

Answer by math_tutor2020(3816) About Me  (Show Source):
You can put this solution on YOUR website!

Consider this shaded area in red

The angle DOF is 60 degrees as the other tutors have pointed out.
This means the red shaded pizza slice area is 60/360 = 1/6 of a full circle's area of radius 2.

full circle area = pi%2Ar%5E2+=+pi%2A2%5E2+=+4pi
1/6 of that full area = %281%2F6%29%2A4pi+=+2pi%2F3

The area of the red shaded region shown above is 2pi%2F3 square cm.

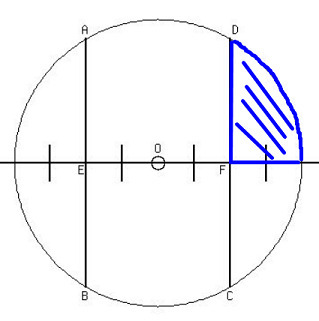

Then subtract off the area of triangle DOF
%282pi%29%2F3+-+sqrt%283%29%2F2
This represents the blue shaded region below


Quadruple this result since there are 4 identical symmetric (i.e. mirrored) such regions
4%2A%28+%282pi%29%2F3+-+sqrt%283%29%2F2+%29

8pi%2F3+-+2%2Asqrt%283%29

Then subtract this from the full circle area
4pi+-+%288pi%2F3+-+2%2Asqrt%283%29%29

4pi+-+8pi%2F3+%2B+2%2Asqrt%283%29

12pi%2F3+-+8pi%2F3+%2B+2%2Asqrt%283%29

4pi%2F3+%2B+2%2Asqrt%283%29
That is the area between the vertical lines.
It is the area of region ABCD.
