Question 871208: i'm unable to understand how to sketch a digraph? of matrices
its so confusing
1)
0 1 1 0
0 0 1 1
0 0 0 1
1 0 0 0
2)
0 1 1 0
1 0 1 0
0 0 0 1
1 1 0 0
3)
0 1 0 1 0
1 0 1 0 0
0 1 0 1 0
1 0 0 0 0
1 1 1 1 0
please help me through simipifying the answers so that i'd understand
im using Linear algebra with application 5th edition by gareth williams
the text book doesnt show any other examples of how to sketch. Found 2 solutions by Fombitz, violettta222:Answer by Fombitz(32388) (Show Source):
You can put this solution on YOUR website!
Work down the first column
The first entry of the column is the start point.
As you move over, if the value is zero, no action.
If the value is one, move up to the first row corresponding entry and draw an arrow to there.

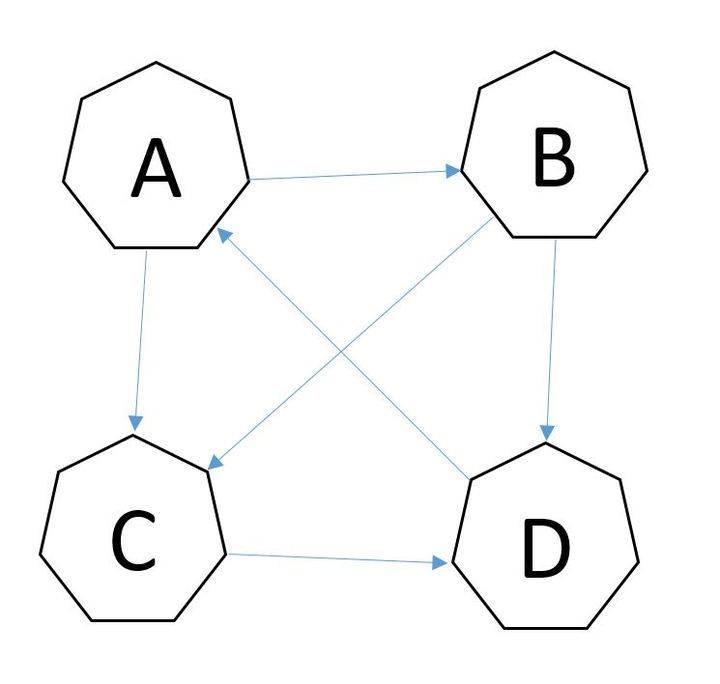

A->B->C : Arrows go from A to B and from A to C
B->C->D : Arrows go from B to C and from B to D
C->D : Arrow goes from C to D
D->A : Arrow goes from D to A
.
.
. .
.
